Good Quality Small Size 240*160 Graphic LCD Display Module
Description
Sunlight readable 240x160 graphic LCD with positive LCD display module, temperature compensation.
Whether you need assistance powering up a display, getting your code working with it, troubleshooting, or have engineering questions, count on us for expert help.
We are not satisfied unless doing business with us is a pleasure for you!

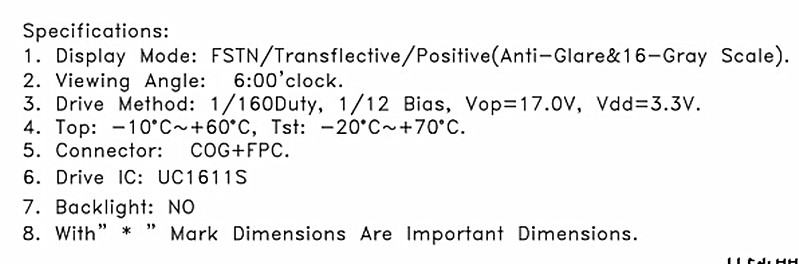

Specification
|
Good Quality Small Size 240*160 Graphic LCD Display Module |
|
|
Resolution |
240*160 |
|
Outline Size |
66.6*51 mm |
|
Viewing Area |
61*40.5 mm |
|
Active Area |
58.065*37.585 mm |
|
Connector |
COG+FPC |
|
Driver IC |
UC1611S |
|
Backlight |
No |
|
Display Mode |
FSTN,Transflective, Positive |
|
Viewing Angle |
6:00 |
|
Drive Method |
1/160 duty, 1/12 bias |
|
Top |
-10℃ TO + 60℃ |
|
Tst |
-20℃ TO + 70℃ |
|
RoHS Compliant |
Yes |
|
Please contact us for datasheet and programming. |
|

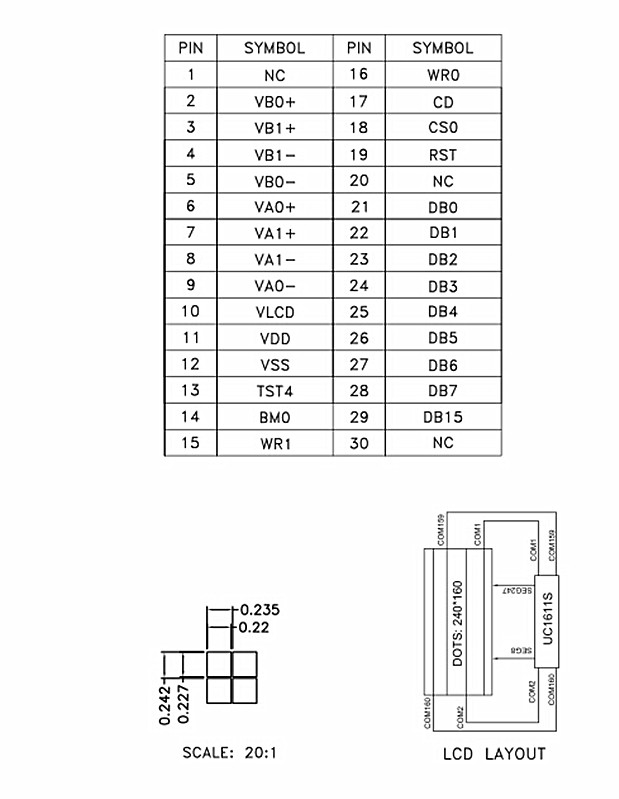

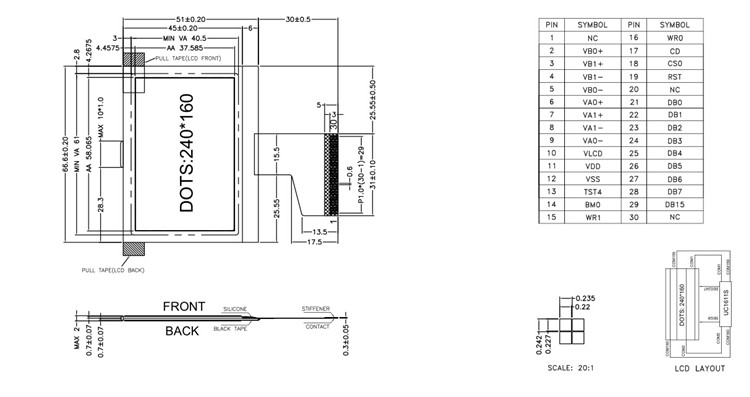

LCD Drawing

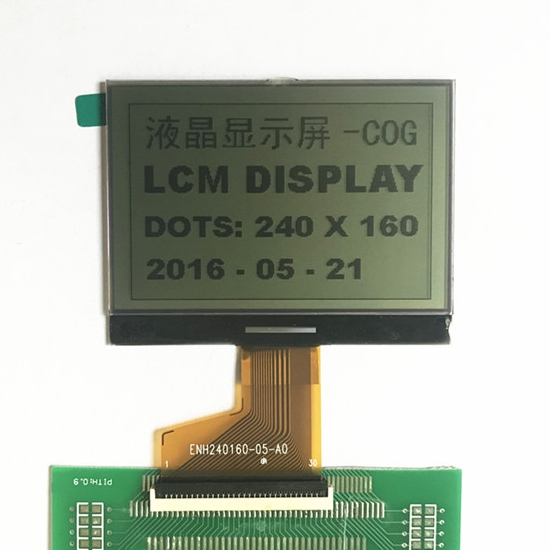

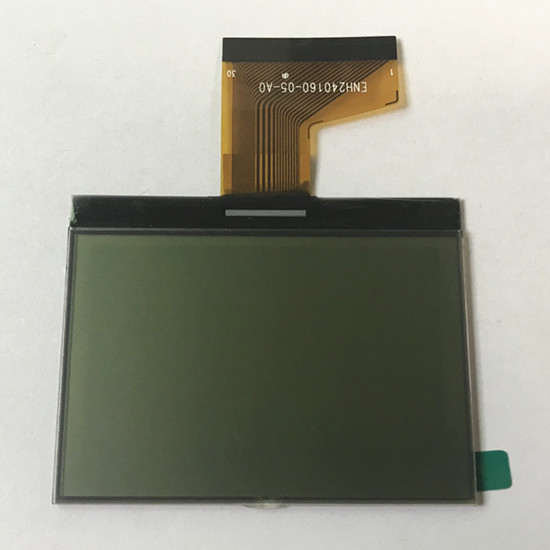

Image Details
LCD Display Product Range
1) TN, STN, FSTN LCD panels / modules
2) Customized LCD panels / modules
3) Small(0.96 inch-7 inch)TFT LCD
Advantages
1. OEM is accepted.
2. Custom Various LCD display module Available.
3. Custom LED Backlight Color Available.
4. Variuos Temperature Range Available.
5. Any question or problem will be replied in 12 hours.
6. 8:00 am 6:00 pm online Available.
