Low Price White on Blue 128x64 dots LCD Display
Description
This white on blue background 128x64 pixel COG graphic LCD display module has an integrated Sitronix ST7567 controller. The graphic LCD is very low power to drive the display.

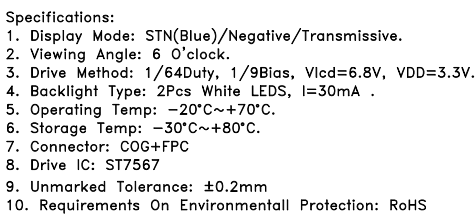

General Specification
Low Price White on Blue 128x64 dots LCD Display |
|
Resolution |
128*64 |
Outline Size |
59*44.3 mm |
Viewing Area |
54.2* 32.5 mm |
Active Area |
47.96*26.5 2mm |
Connector |
COG+FPC |
Driver IC |
ST7567 |
Backlight |
2PCS WHITE LEDS, 3.3V 15mA |
Display Mode |
STN/Transmissive/Negative |
Viewing Angle |
6:00 |
Drive Method |
1/64 duty, 1/9 bias |
Top |
-20℃ TO + 70℃ |
Tst |
-30℃ TO + 80℃ |
RoHS Compliant |
Yes |
Please contact us for datasheet and programming. |

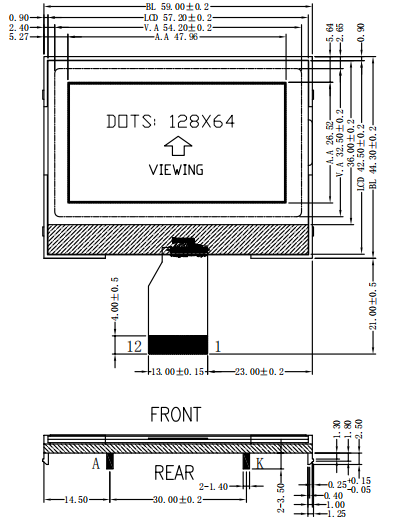

LCD drawing

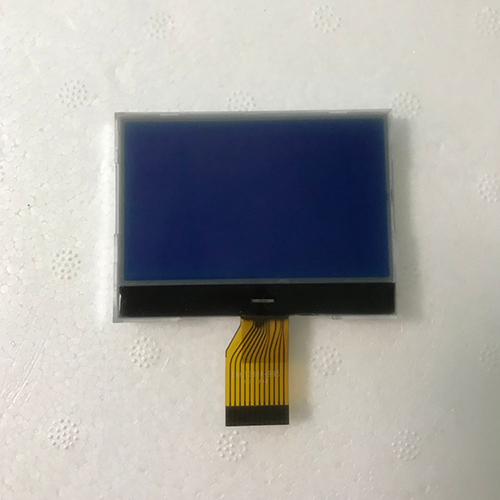

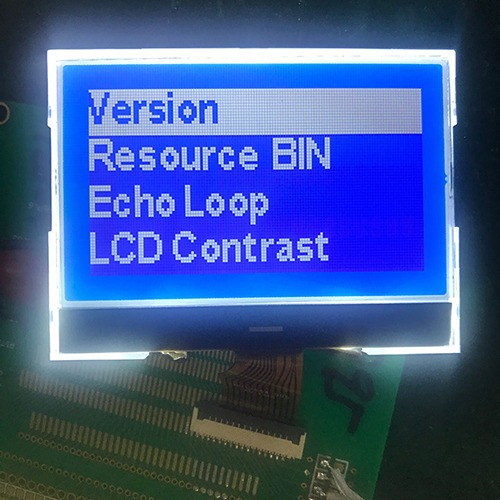

Image Details
FAQ
1.Why choose Enrich?
1) Enough industrial experience and involved main markets all over the world.
2) Precise and advanced equipment.
2.What can we do for you?
Please share with us your requirements.
3. What is the LCD application?
House hold device, smart wearable device, medical electronics, instrumentation, etc.
