128x64 Graphic Monochrome LCD Display

128x64 Graphic Monochrome LCD Display

128x64 Graphic Monochrome LCD Display



Details

Description

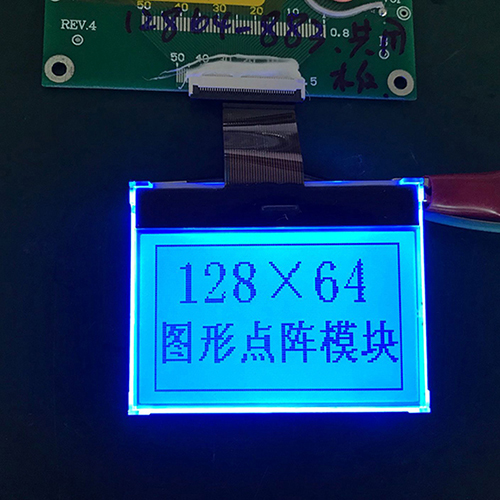

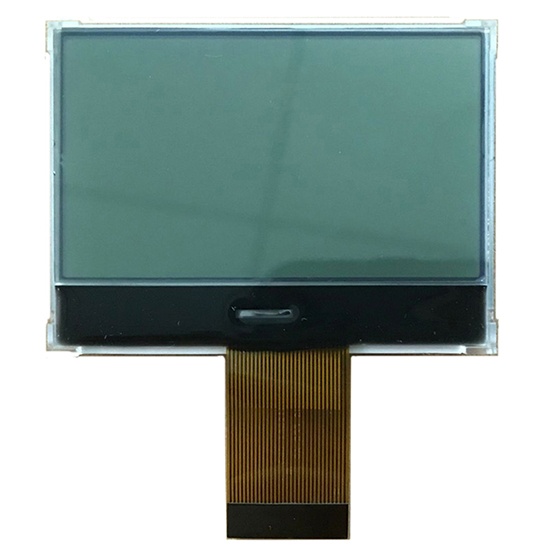

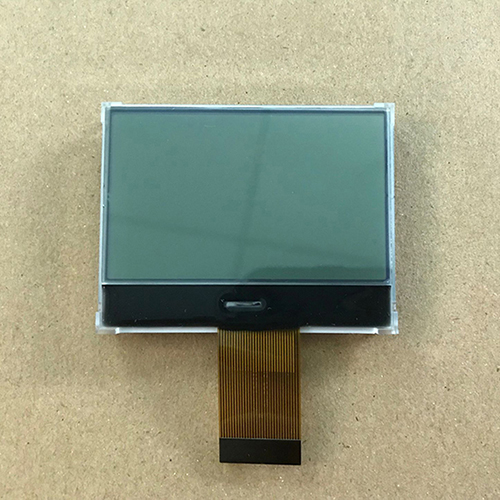

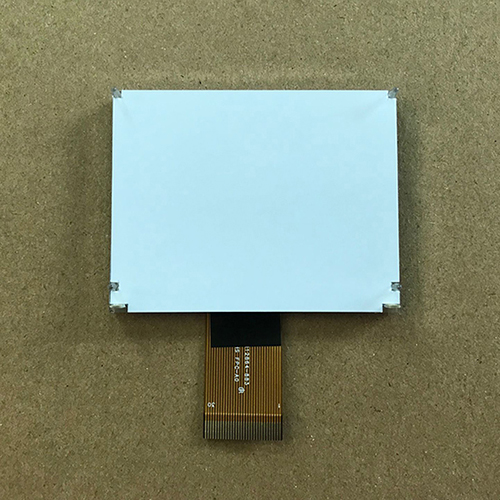

This is a thin, extremely low-power 128x64 graphic LCD display module. It has backlight, but you can tur consumes no power to illuminate the display. This display is perfectly suited for hand-held or any application requiring low power consumption or a very thin display. A row of icons is automatically shown at the top of the display without having to be rendered. It has an integrated controller. The FFC is designed for inexpensive mass-production, with no need for a mating connector as the module solders directly to your PCB.

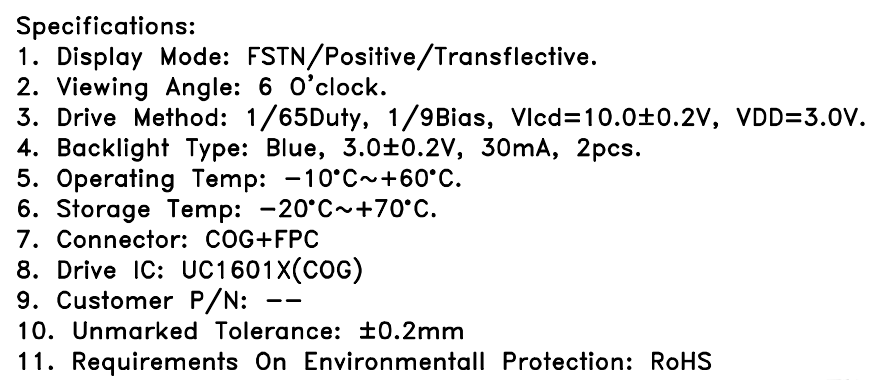

Key Features

128x64 Graphic Monochrome LCD Display

Resolution

128x64

Outline Size

56.6x44.2 mm

Viewing Area

50.6x31 mm

Active Area

46.56x27.68 mm

VDD

3.3V

Driver IC

UC1601X(COG)

Backlight

Blue LED

Display Mode

FSTN, Transflective, Positive

Viewing Angle

6:00

Drive Method

1/65 duty, 1/9 bias

Top

-10℃ To + 60℃

Tst

-20℃ To + 70℃

RoHS Compliant

Yes

Please contact us for datasheet and programming.


Image Details

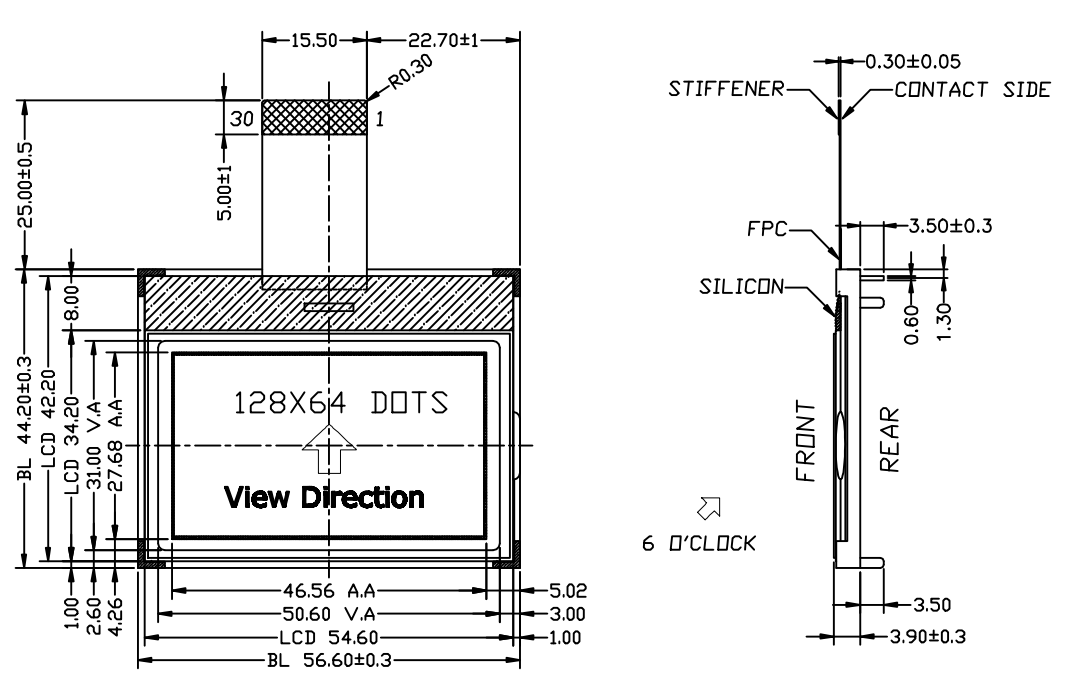

LCD Drawing

Advantages

1. OEM is accepted.

2. Custom Various LCD display module Available.

3. Custom LED Backlight Color Available.

4. Variuos Temperature Range Available.

5. Any question or problem will be replied in 12 hours.

6. 24-hour hotline Available.
