Octagon Segment LCD Display Module



Details

Description



This irregularity segment display module would be a fantastic enhancement to your next project. It is approximately 73mm in height (just under 3.6"). We often get asked, "What's your smallest display?". Enrich specializes in small displays, in fact the majority of our displays are smaller than 5". To make it easier for you to find the smallest lcd display, please contact us for more details.



General Specification

Octagon Segment LCD Display Module

Outline Size

68*73 mm

Viewing Area

65*65 mm

Connector

COG+FPC

Driver IC

UC1676C

Backlight

3 WLED

Display Mode

VA/Transmissive/Negative

Viewing Angle

6:00

Drive Method

1/2 duty, 1/2 bias

Top

-30℃ TO +80℃

Tst

-40℃ TO + 85

RoHS Compliant

Yes

Please contact us for datasheet and programming.



Image Details

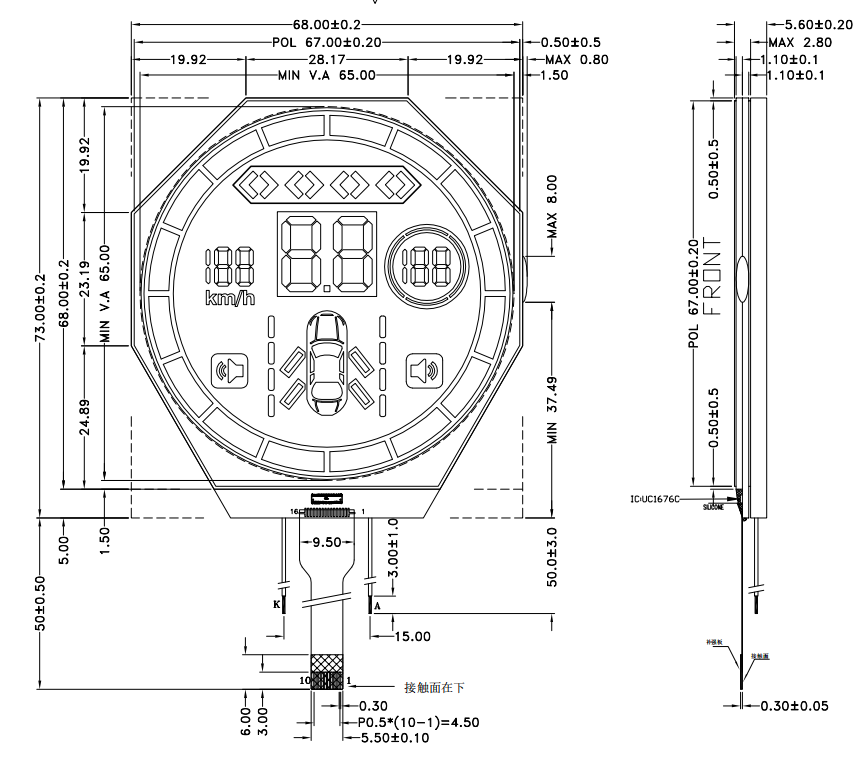

LCD drawing

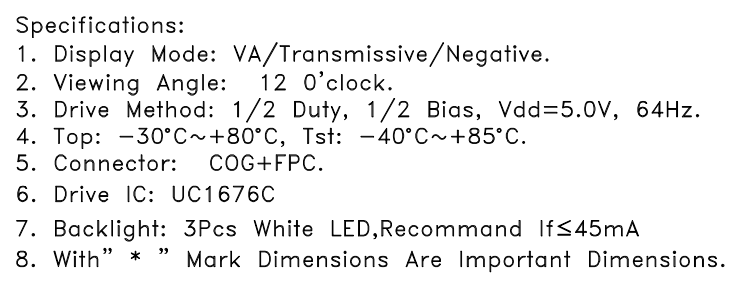

LCD Specification

FAQ

1.Why choose Enrich?

1) Enough industrial experience and involved main markets all over the world.

2) Precise and advanced equipment.



2.What can we do for you?

Please share with us your requirements.



3. What is the LCD application?

House hold device, smart wearable device, medical electronics, instrumentation, etc.
