China 4 Digits 7 Segment LCD Display

China 4 Digits 7 Segment LCD Display
  • China 4 Digits 7 Segment LCD Display
  • China 4 Digits 7 Segment LCD Display
  • China 4 Digits 7 Segment LCD Display

China 4 Digits 7 Segment LCD Display



Details

Description



segment LCD is typically required when the display of more than just text is required. Some of our segment LCD displays have the ability to render graphics in grayscale, enabling you to show images and elements of your UI (user interface) with more depth and definition.

We offer the largest selection and lowest prices for segment TN/HTN/STN/FSTN/ VA LCD displays in China. Whether you need one or one-thousand, Enrich has the segment LCD for your product.



LCD Details

China 4 Digits 7 Segment LCD Display

Panel Size

43.8×36 (mm)

View Area

36×32 (mm)

Display Mode

FSTN,Transflective, Positive

View Angle

6:00

Operating Temperature

-10 to + 60

Operating Voltage

3.3V

Module Weight

TBD

Driver IC

ST7567A

Backlight

White

Please contact me for questions regarding this product.

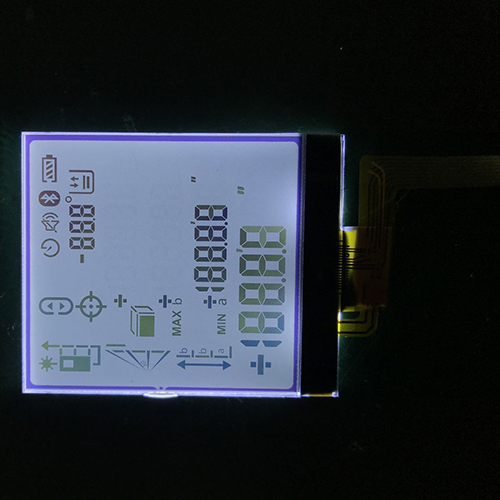

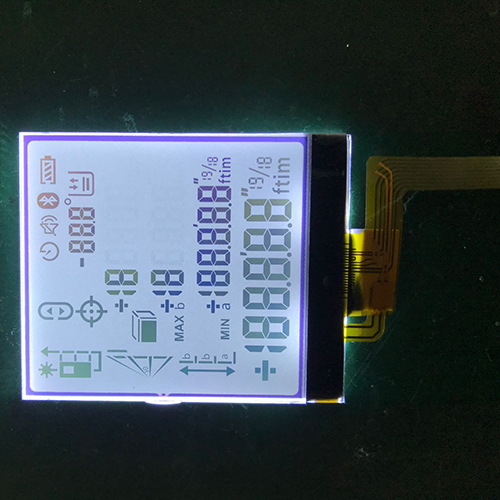

Image Details

OLED Applications

-Meter

-Ammeter

-Instrument tuner

-External hard disk

- Printers

-Wearable devices

-Medical & health equipment

-3D & Shutter



As a supplier of international renowned enterprises, most of our products are exported to Europe, America and other countries.



Physical Size

FAQ

+How to place an order ?

Please send us your purchase order by Email or through Whats APP directly, or ask us to send you one invoice.



+How can I get the data sheet ?

If you need the standard OLED, the datasheet will be sent to request after getting your inquiry.



+How long can I get the sample?

Samples will be ready for deliver in 5-7 days.



+Are you manufacture or trade company?

We are the manufacture specialized in TN, STN, FSTN, HTN, TFT products over 6 years.
