4 Digit 7 Segment LCD Display Module
Description
Whether you need assistance powering up a display, getting your code working with it, troubleshooting, or have engineering questions, count on us for expert help.
We are not satisfied unless doing business with us is a pleasure for you!

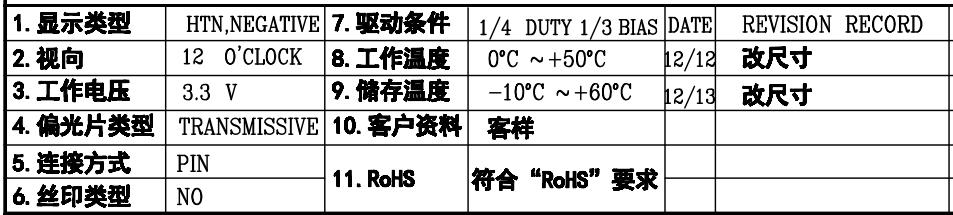

LCD Specifications
|
4 Digit 7 Segment LCD Display Module |
|
|
Outline Size |
52.8*24.2/21.8 mm |
|
Viewing Area |
50.8*19.8 mm |
|
Connector |
PIN |
|
Driver IC |
NO |
|
Operating Voltage |
3.3V |
|
Display Mode |
HTN, Negative |
|
Viewing Angle |
12:00 |
|
Drive Method |
1/4 duty, 1/3 bias |
|
Top |
0℃ TO + 50℃ |
|
Tst |
-10℃ TO + 60℃ |
|
RoHS Compliant |
Yes |
|
Please contact us for datasheet and programming. |
|

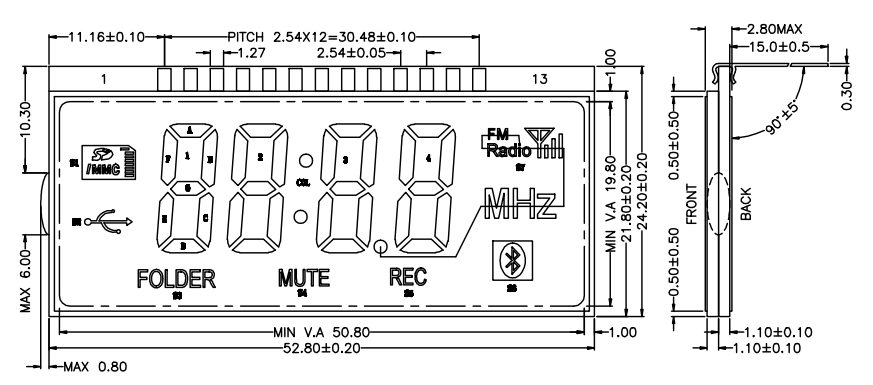

LCD Drawing

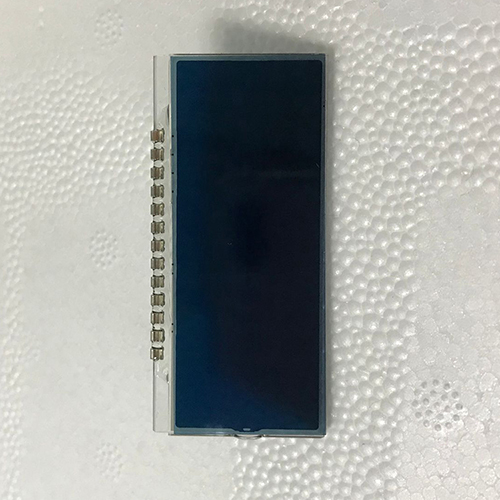

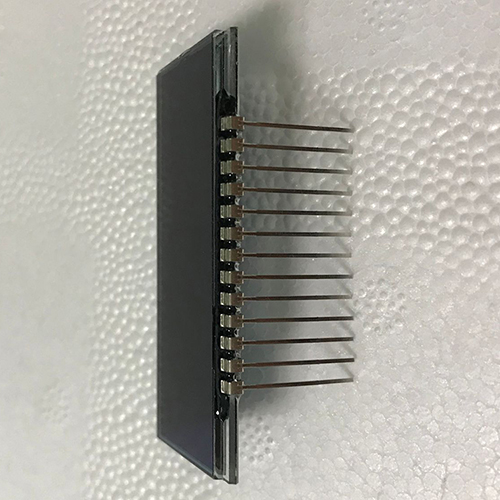

Image Details
FAQ
(1)When can I get the price?
We will quote on the LCD within 24 hours after receive your inquiry. If it is a urgent case, please call us or tell us in your email so that we will regard your inquiry priority.
(2)Do you accept small order or sample order?
Yes, of course. You can place samples or small order to test the quality.
(3)What is your samples and mass production lead time?
Samples Time: 1-5 days
Production Time: 5-7 days
It should be based on the order quantity and complexity.
(4)Are you products made with high quality?
Yes, quality is our culture. With us, you money is safe, and your business is in safe.
