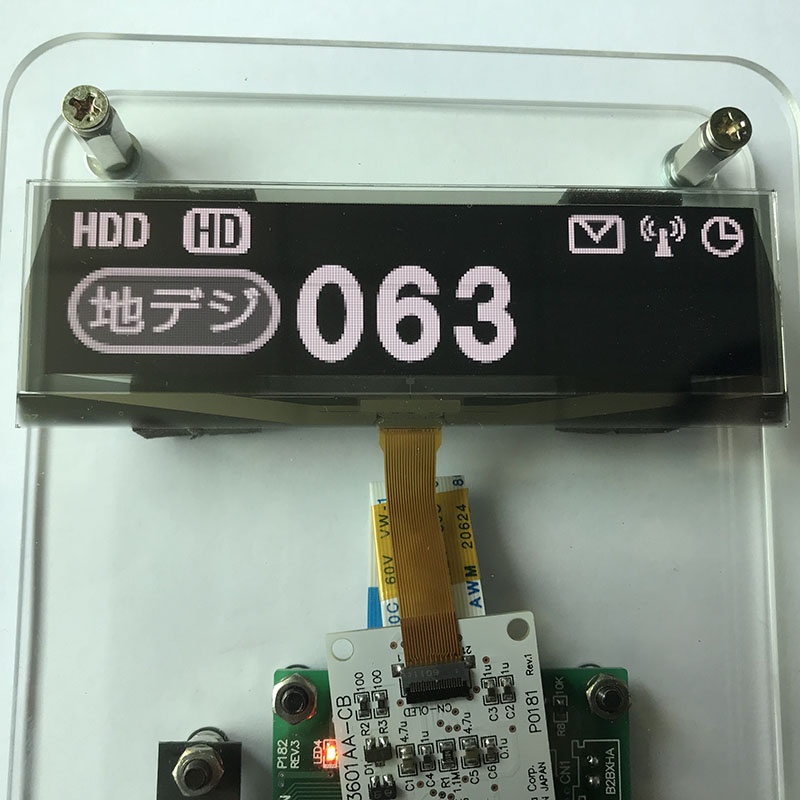

256x64 3.6 inch OLED Display Module
These displays are small, only about 3.6" diagonal, but very readable due to the high contrast of an OLED display. This display is made of 256*64 individual white OLED pixels, each one is turned on or off by the controller chip. Because the display makes its own light, no backlight is required. This reduces the power required to run the OLED and is why the display has such high contrast; we really like this miniature display for its crispness.
TECHNICAL SPECS
|
256*64 3.6 inch OLED Display Module |
|
|
Size |
3.6” |
|
Control IC |
SSD1322 |
|
Resolution |
256*64 |
|
Glass Size |
94.70*30.80 mm |
|
Active Area |
87.528*21.288 mm |
|
Interface |
Serial |
|
Power-Supply Voltage |
17.0V / 2.8 V |
|
Display Color |
white |
|
Drive Method |
Passive Matrix |
|
Gray Scale |
16 |
|
Module Weight |
TBD |
|
MOQ |
1 Piece |
|
Luminance |
140 cd/m2 |
|
Pixel Pitch |
0.342*0.333 mm |
|
We have a professional technical team, any questions please share with us. |
|

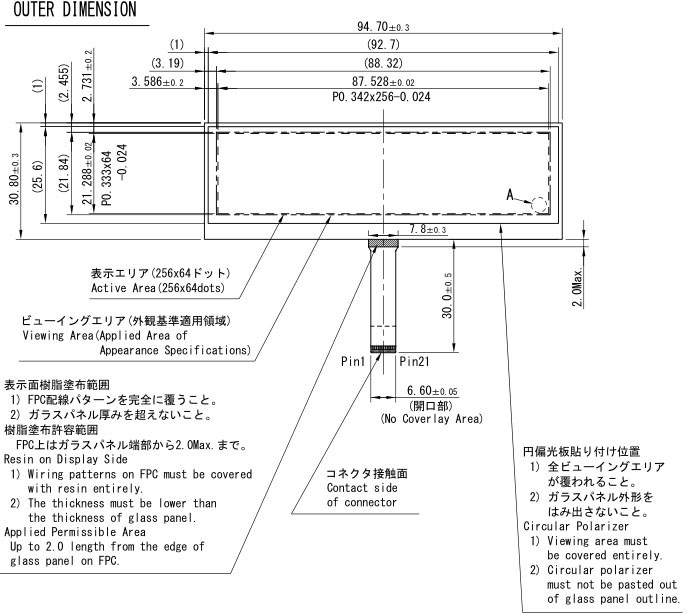

PRODUCT STRUCTURE
