1.3 inch OLED module
8
Description

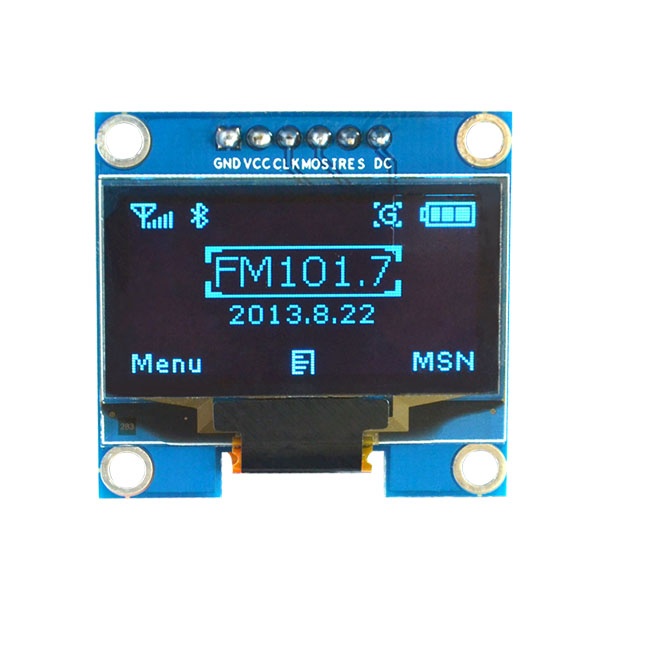

A beautiful white monochrome OLED 1.3 inch 128x64 graphic OLED display module. This small size graphic OLED display module would be a fantastic enhancement to your next project. It packs a tremendous amount of pixels in a relatively small space. It is approximately 33.7mm in height and so could easily be placed on the front of a 1U server.
Features
|
1.3 inch OLED module |
|
|
Size |
1.3” |
|
Control IC |
SSD1306 |
|
Resolution |
128*64 |
|
Viewing Area |
29.42x14.7 (mm) |
|
Physical Dimensions |
35.4x33.7(mm) |
|
Interface |
IIC Interface |
|
PIN Number |
4 PIN, 6PIN, 7PIN, 8PIN |
|
Display Color |
White or Blue |
|
Operating Temperature |
-40 to + 85 |
|
Operating Voltage |
3.3V-5V |
|
Module Weight |
8g |
|
MOQ |
1 Piece |
|
Test Platform |
1>51 2>STM32 3>STM8 4>Arduino |
Interface Definition
|
(1)4PIN |
1>GND/VCC 2>VCC/GND 3>SCL 4>SDA |
|
(2)6PIN
|
1>GND 2>VCC 3>CLK 4>MOSI 5>RES 6>DC |
|
(3)7PIN
|
1>GND 2>VCC 3>CLK 4>MOSI 5>RES 6>DC 7>CS |
|
(4)8PIN
|
1>GND 2>VCC 3>CLK 4>MOS 5>DC 6>CS1 7>FSO 8>CS2 |

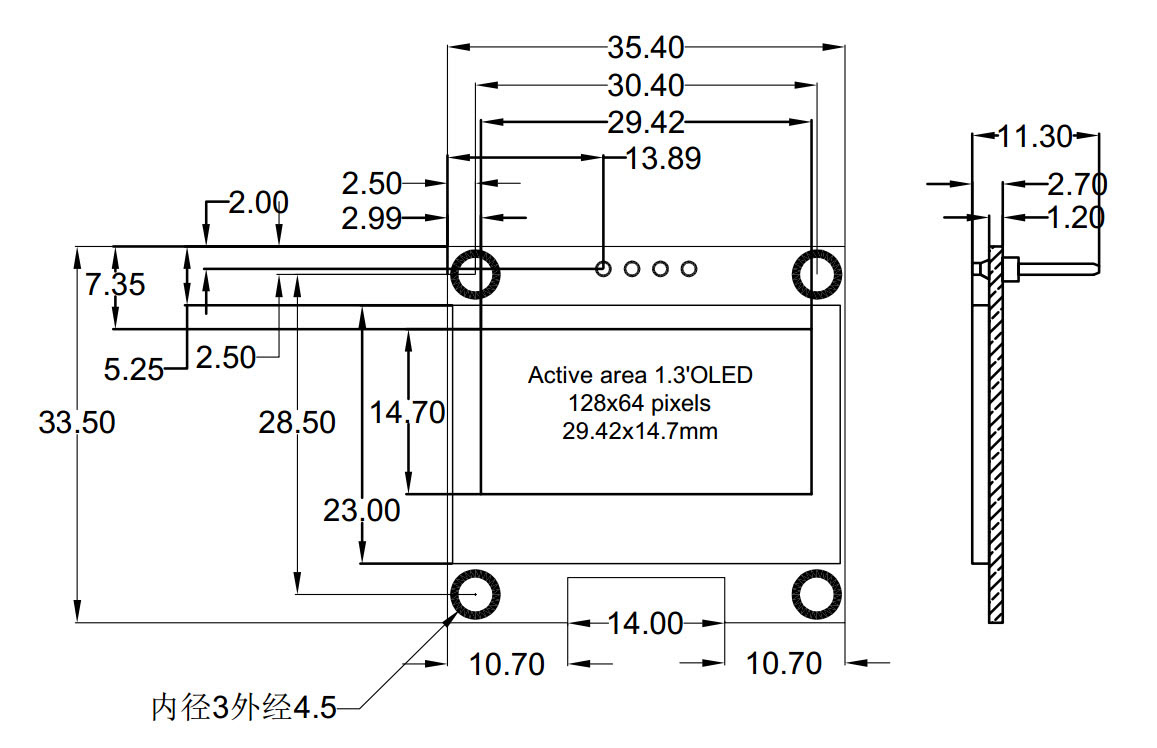

Physical Size
Details of Core Technology
-OLED Module Test Program
-Schematic Diagram
-OLED Data Sheet
