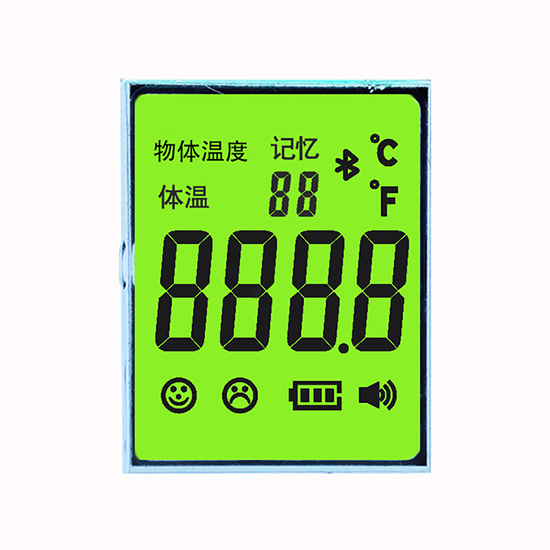

Segment LCD Display for Temperature Gun/Forehead temperature Meter
Description
This segment LCD display use for temperature gun or forehead temperature meter, that kind of LCD display can be supplied. Please contact us with your requirements, waiting for your contact.

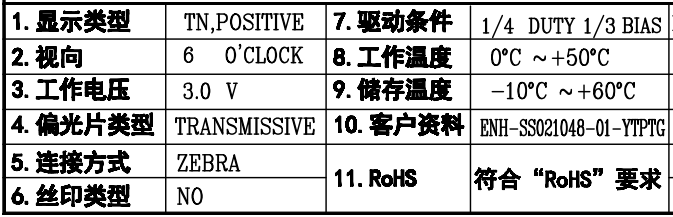

Specification
|
Segment LCD Display for Temperature Gun/Forehead temperature Meter |
|
|
Outline Size |
27*23 mm |
|
Viewing Area |
20*20 mm |
|
Connector |
ZEBRA |
|
Operating Voltage |
3V |
|
Backlight |
Yes |
|
Display Model |
TN, Transmissive, Positive |
|
Viewing Angle |
6:00 |
|
Drive Method |
1/4 duty, 1/3 bias |
|
Top |
0℃ TO + 50℃ |
|
Tst |
-10℃ To + 60℃ |
|
RoHS Compliant |
Yes |
|
Please contact us for datasheet and programming. |
|

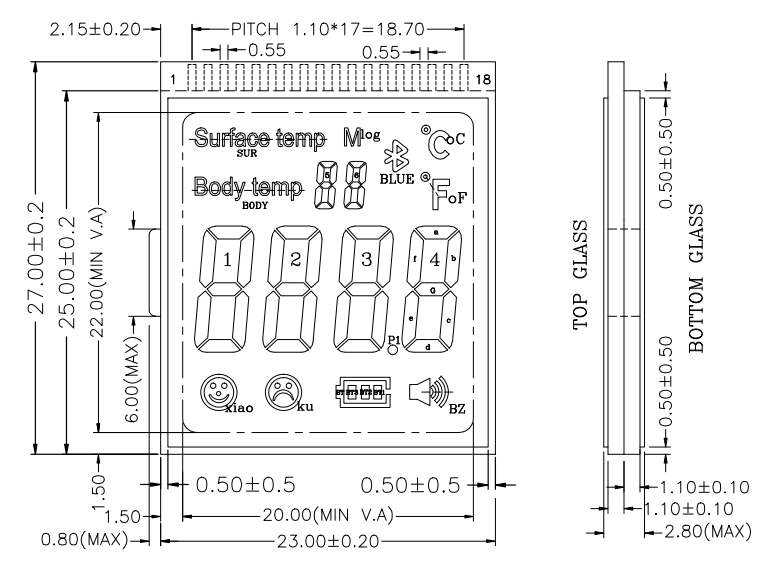

LCD Drawing

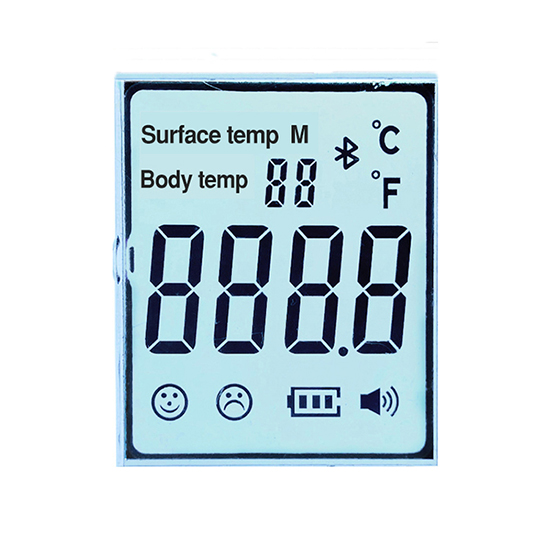

Image Details
