160*160 Resolution LCD Display
Description

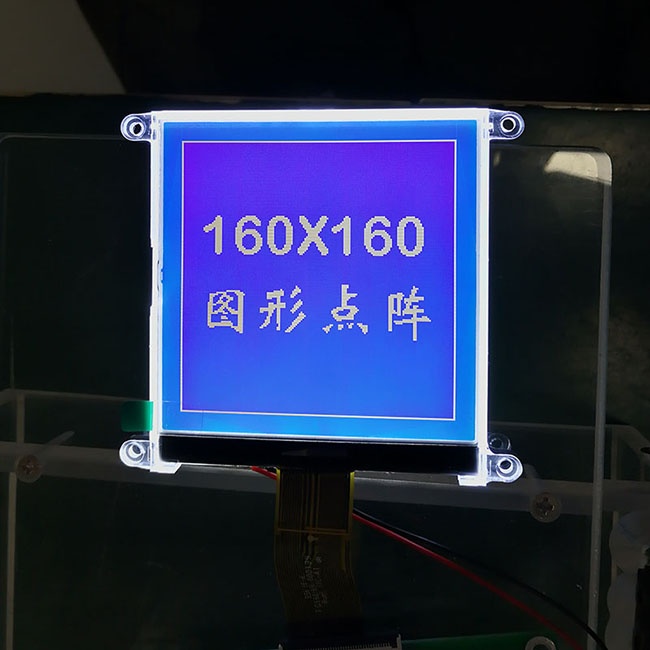

ENH-16016-16 is a square blue graphic 160x160 LCD module which is having the LCD module dimension of 64x64 mm and AA size of 54.38x54.38 mm. This ENH-16016-16 model is with controller UC1698u on COG. It can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.
Key Features
160*160 Resolution LCD Display |
|
Resolution |
160*160 |
Outline Size |
64.0*64.0mm |
Viewing Area |
60.0*60.0mm |
Active Area |
54.38*54.38mm |
Connector |
COG+FPC |
Driver IC |
UC1698u(COG) |
Backlight |
4PCS White Side Led |
Display Mode |
STN blue, Transmissive, Negative |
Viewing Angle |
6:00 |
Drive Method |
1/160 duty, 1/10 bias |
Top |
-20℃ TO + 70℃ |
Tst |
-30℃ To + 80℃ |
RoHS Compliant |
Yes |
Please contact us for datasheet and programming. |

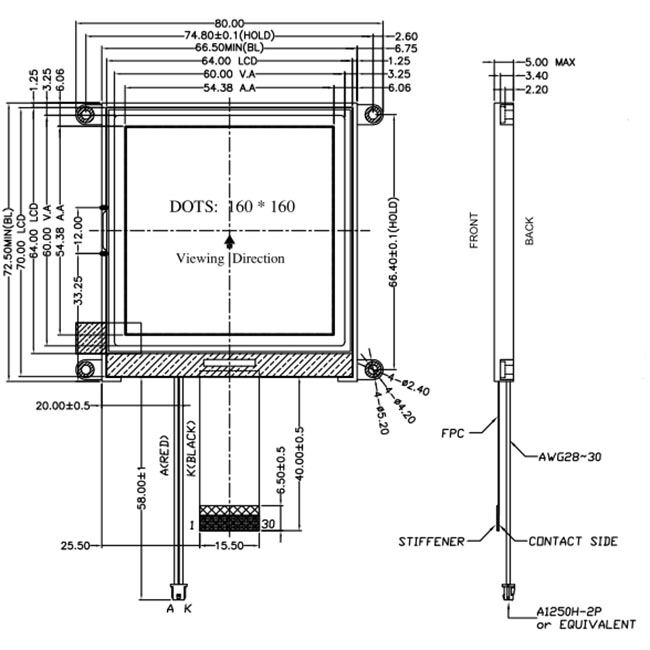

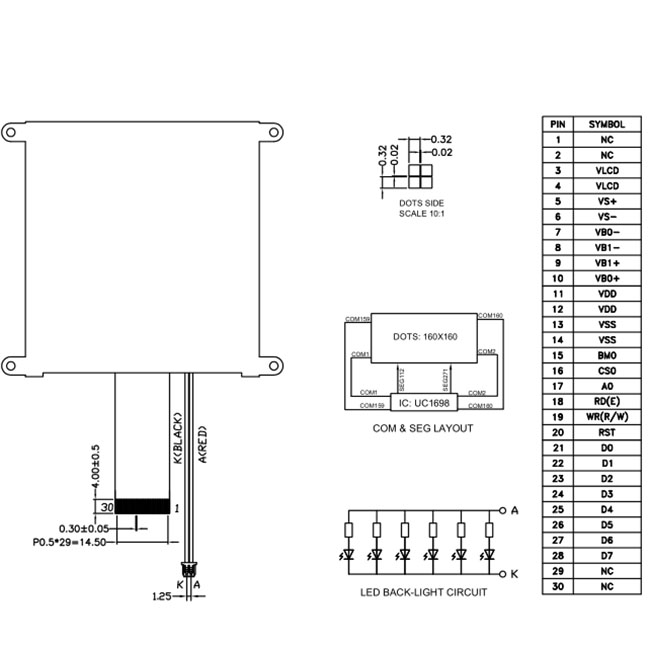

LCD Drawing
LCD Display Product Range
1) TN, STN, FSTN LCD panels / modules
2) Customized LCD panels / modules
3) Small(1.5 inch-7 inch)TFT LCD
