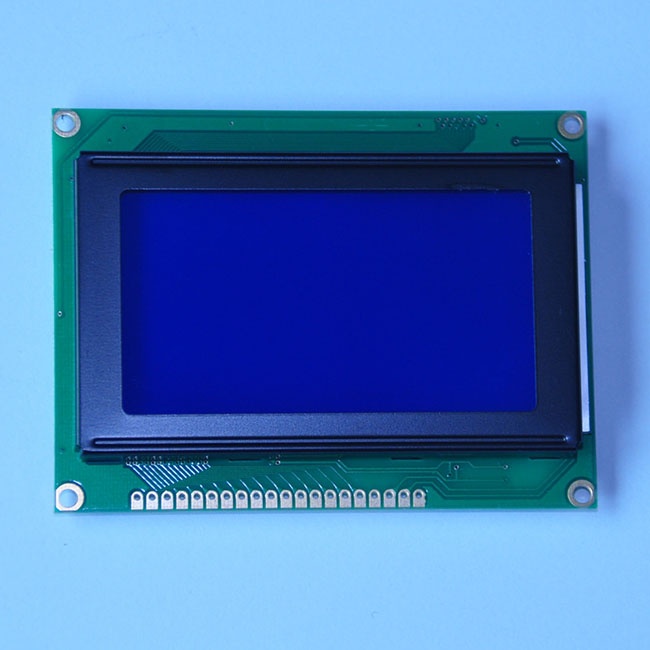

ENH12864J-1-B is a monochrome 128x64 graphic LCD display module with white backlight, which is having the outline dimension with 93(L) * 70(W) * Max 13.5(T) mm. This 128x64 graphic LCD display is built in with 0107 and 0108 controller IC. ENH12864J-1-B supports 8-bit MPU interface. This module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.

Specification

128x64 dots LCD Display

STN (Blue), Negative, Transmissive

Duty:1/64. Bias:1/9. VOP=10.5V

Viewing Angle: 6:00

Drive Voltage: 5.0V

Operating Temperature: -20~70℃

Storage Temperature: -30~80℃

White Backlight

Drive IC: 0108, 0107

RoHS Compliant

Please contact us for datasheet and programming.



Features

-Resolution: 128*64

-Interface: 8-bit MPU interface

-Outline Dimension: 93(L) * 70(W) * Max 13.5(T)mm

-Viewing Area: 70.7(L) * 38.8( W)mm

-Dot Size: 0.48(W) × 0.48(H)mm

-Dot Pitch: 0.52(W) × 0.52(H)mm

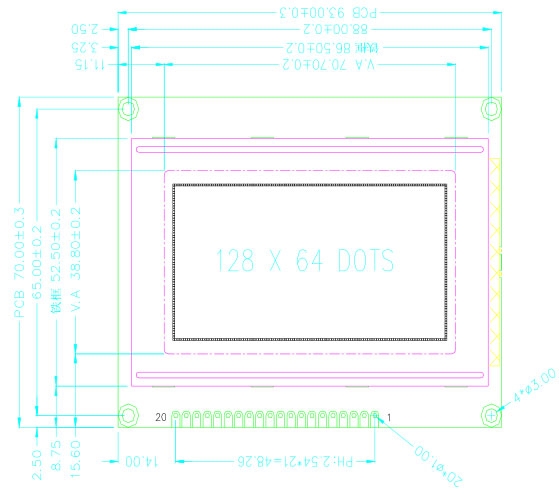

LCD Drawing

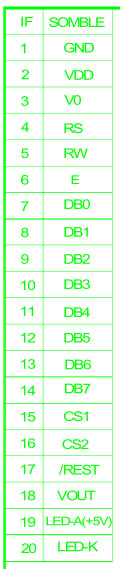

PIN Definition
